Overview

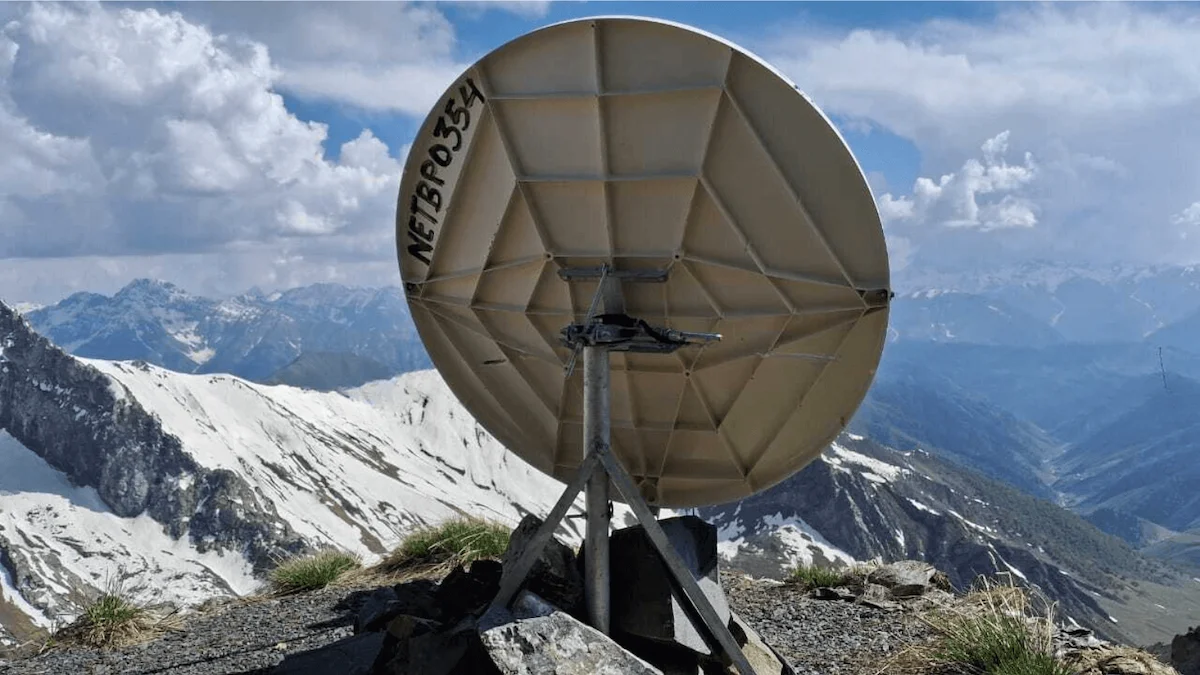

Hughes HTS VSAT systems are built on the industry-leading JUPITER™ platform, designed for fixed land-based locations where terrestrial networks are unavailable, unreliable, or unsuitable for mission-critical operations. Using DVB-S2X Adaptive Coding and Modulation (ACM) on the forward channel and MF-TDMA on the return channel, these terminals deliver best-in-class throughput performance of up to 5 Mbps.
Netcom Associates is a Hughes Platinum Channel Partner providing complete supply, installation, commissioning and long-term maintenance of VSAT terminals across government, PSU, defence, utilities and enterprise sites. With 1500+ terminals installed since 2002, we have one of the deepest VSAT deployment track records in India.
Our VSAT Products
GEO · Hughes JUPITER™

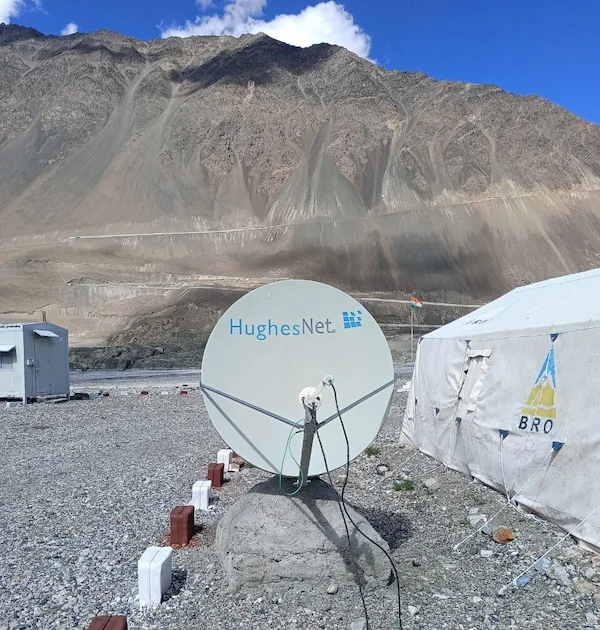

Hughes HT2300
Next-Generation Satellite Router| Service Speed | Up to 5 Mbps (plan dependent) |
| Forward Channel | DVB-S2X with ACM |
| Frequency | C-, Ku-, Ka-band |
| Modulation (Rx) | QPSK, 8PSK, 16APSK, 32APSK, 64APSK |
| Return Channel | MF-TDMA, LDPC FEC |
| Symbol Rate (Rx) | Up to 235 Msps |
| Network Ports | 4 × GigE LAN + USB |
| Power Input | 90–264 VAC, 47–63 Hz |
| Dimensions | 20.4 cm H × 3.9 cm W × 22.7 cm D |
| Operating Temp | 0°C to +50°C |
| Antenna Options | 74 cm, 98 cm, 120 cm, 180 cm |
| IP Features | BGP, RIPv2, VLAN, NAT/PAT, ACL, VRRP |
| Compliance | UL/CSA/EN 60950-1, FCC Part 15 Class B, RoHS-2 |
GEO · Hughes JUPITER™

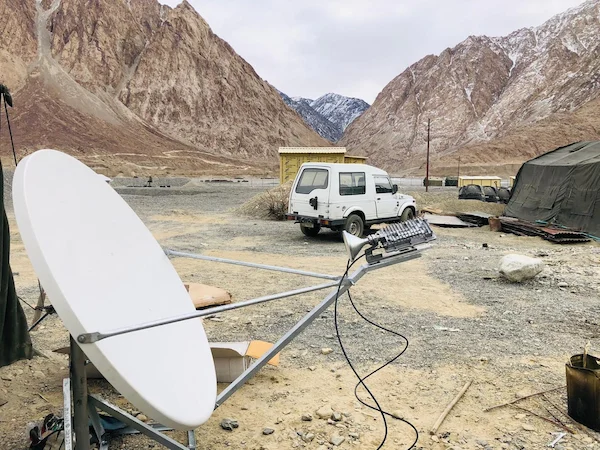

Hughes HT2010
High-Speed Broadband Router| Service Speed | Up to 5 Mbps (plan dependent) |
| Forward Channel | DVB-S2X with ACM |
| Frequency | Ka-band or Ku-band |
| Modulation (Rx) | OQPSK, QPSK, 8PSK, 16APSK |
| Return Channel | MF-TDMA, LDPC FEC |
| Symbol Rate (Rx) | Up to 235 Msps |
| Encryption | AES-256 link encryption |
| Network Ports | 1 × GigE LAN + USB |
| Power Input | AC 90–264 VAC, 47–63 Hz |
| Power Consumption | 55 W max (with HB-220) |
| Dimensions | 7.2" H × 2.6" W × 5.8" D |
| Operating Temp | 0°C to +50°C |
| Radios | Hughes HB210 / HB220 |
| Compliance | UL/CSA/EN 60950, FCC Part 15 Class B, RoHS |
GEO · Make in India

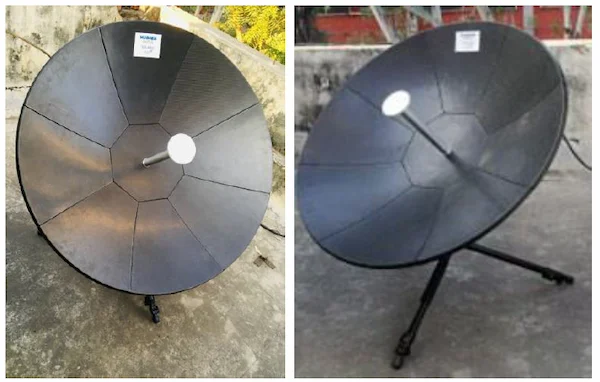

Hughes QDA
Quick Deployable VSAT Terminal| Antenna | 1.0m Ku-band carbon fiber flyaway |
| Tx Frequency | 13.75–14.5 GHz |
| Rx Frequency | 10.70–12.75 GHz |
| Antenna Gain (Rx) | 40.0 dBi |
| Antenna Gain (Tx) | 41.0 dBi |
| Setup Time | Under 15 minutes |
| Weight | ≤ 20 kg |
| Ingress Rating | IP67 |
| Operating Temp | −50°C to +55°C |
| Wind (Operational) | 40 Kmph |
| Wind (Survival) | 65 Kmph (anchored) |
| Encryption | AES-256 |
| Wi-Fi | Dual-channel 2.4 GHz, up to 100m range |
| Shipping | 2 rugged IATA cases + optional backpacks |
Typical Applications
Key Advantages
Stable, always-on satellite connectivity for data, voice, video and SCADA applications at remote sites.
Hardware-based conditional access with AES-256 encryption - trusted by government and defence users.
Operates across C-, Ku- and Ka-band networks for flexibility across India's satellite infrastructure.
The QDA terminal is assembled by one person in under 15 minutes - no fasteners, no special tools.
QDA operates from -50°C to +55°C with IP67 ingress rating - built for India's harshest conditions.
Netcom Associates is a Hughes Platinum Channel Partner - 1500+ terminals installed across India since 2002.
