Overview

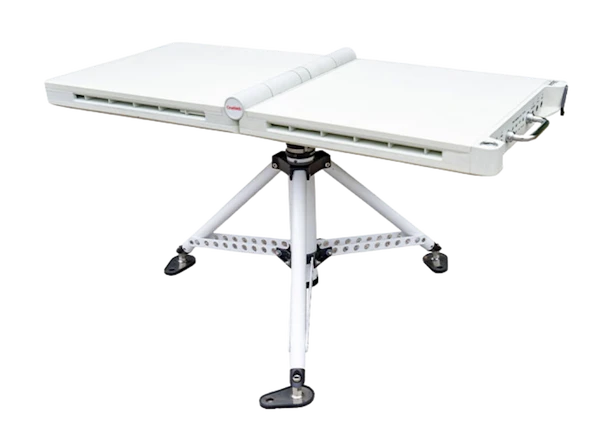

The Inster FoldSat LEO Ku OW is a uniquely designed, folding flat-panel satellite terminal built for teams operating beyond the reach of any terrestrial network. It integrates an Electronically Steered Array (ESA) terminal into a compact, foldable form factor and operates at full-duplex speeds over the Eutelsat OneWeb LEO constellation via Instelsat's FlexMove LEO services.

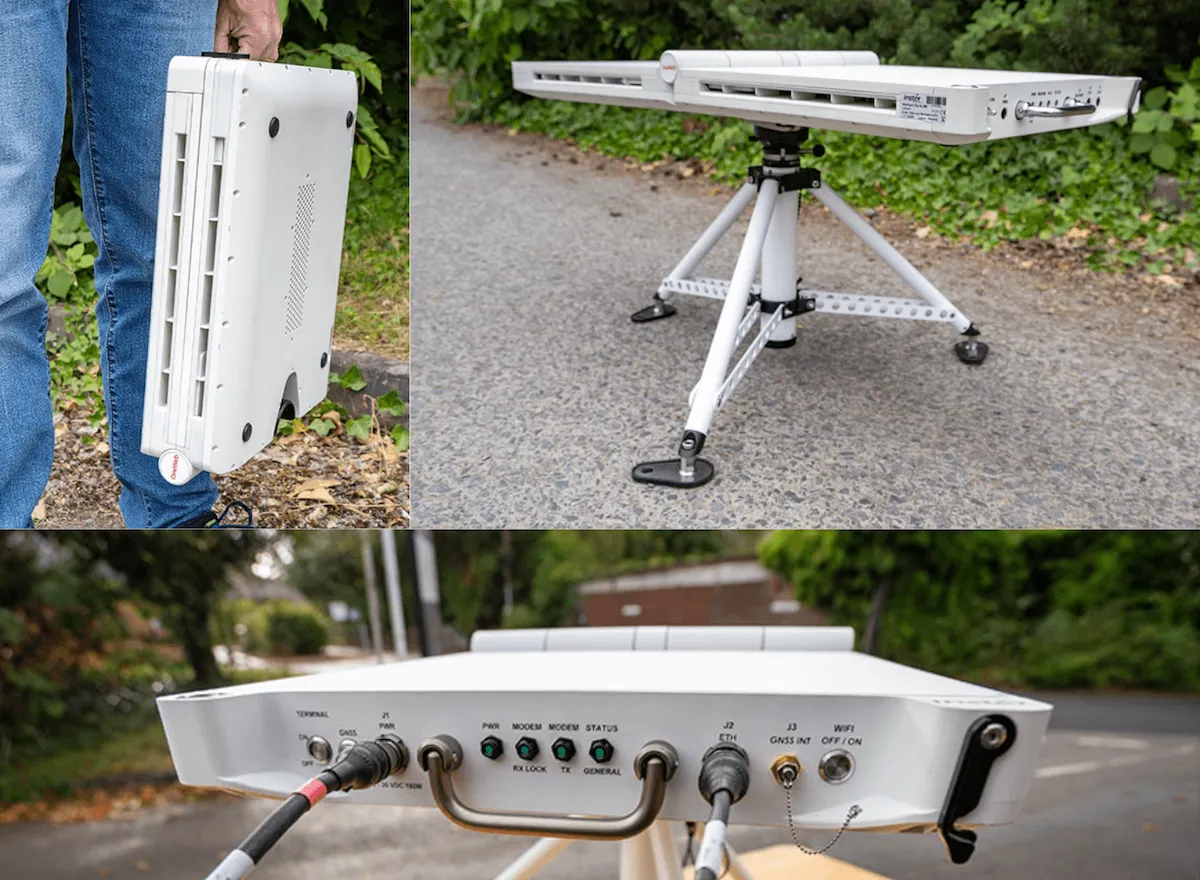

Available in both military (dark green) and commercial (white) variants, the FoldSat is carried by one person, sets up in minutes, runs on battery power, and delivers high-speed broadband for voice, video, data and imagery - in even the roughest environments.
Inster FoldSat LEO Ku OW
| Peak Downlink | 100 Mbps |
| Peak Uplink | 20 Mbps |
| Duplexity | Full duplex |
| Antenna Type | Flat Panel ESA (electronically steered) |
| Frequency | LEO Ku band |
| Network | Eutelsat OneWeb LEO constellation |
| Folded Dimensions | 448 × 374 × 114 mm (17.6" × 14.7" × 4.5") |
| Unfolded Dimensions | 855 × 374 × 57 mm (33.7" × 14.7" × 2.2") |
| Terminal Weight | 11.8 kg (26 lbs) |
| Total System Weight | 17.5 kg / 38.6 lbs (with AC/DC, cables, tripod, batteries) |
| Power Sources | AC/DC, external battery, solar or vehicle battery (optional) |
| Power Consumption | 170 W typical / 190 W peak |
| Battery Capacity | 294 Wh - approx. 90 minutes on battery |
| Operating Temp | -40°C to +55°C |
| Ingress Rating | IP65 |
| Certifications | FCC, MIL-STD 810H, MIL-STD 461G compliant |
| Wi-Fi | Wi-Fi 6 - up to 100 feet range |
| Interfaces | 1 × 1GbE port, 4 × Night Vision Goggle LED (optional), external GNSS input |
| Variants | Military (dark green) / Commercial (white) |
Typical Applications
Key Advantages
Self-aligning ESA means no satellite pointing expertise needed. One person, one carry case, minutes to go live.
OneWeb's 648-satellite LEO constellation covers all of India - J&K, Northeast, Andamans, offshore - no blind spots.
MIL-STD 810H and 461G certified - built to withstand the harshest operational environments.
Runs on AC, DC, external battery, solar or vehicle power - no dependency on grid infrastructure.
100/22 Mbps full-duplex supports live HD video, voice communications and high-resolution imagery simultaneously.
Operates from -40°C to +55°C with IP65 ingress protection - designed for India's most extreme environments.
Netcom Associates Support
- Pre-deployment configuration and testing - ready to operate on arrival
- Field training for operational teams - minimal learning curve, maximum readiness
- Integration with secure communication systems - compatible with existing networks
- On-call technical support - 24/7 assistance for mission-critical deployments
- Lifecycle support - maintenance, spares and upgrades for long-term operational continuity
