Overview
LEO Land Fixed terminals operate on the Eutelsat OneWeb Low Earth Orbit (LEO) constellation - a network of 648 satellites delivering high-speed, low-latency broadband to every corner of India, including the most remote locations where terrestrial networks don't reach.
Unlike GEO VSAT, LEO satellites orbit much closer to Earth, significantly reducing signal latency and enabling faster, more responsive connectivity. Netcom Associates deploys both Flat Panel Electronically Steered Antenna (ESA) terminals and Parabolic Auto-Pointing terminals - each suited to different site requirements, budgets and performance needs.
All terminals below are supplied with the CNX-WIFI indoor unit - featuring Wi-Fi 6, 4-port GigE RJ45 and F-type connectivity.
Flat Panel ESA Terminals
Active Electronically Scanned Array (AESA) terminals with no moving parts - low profile, weather-tight, single-person install. Available in half duplex and full duplex configurations.
Half Duplex Terminals
Half Duplex · LEO ESA

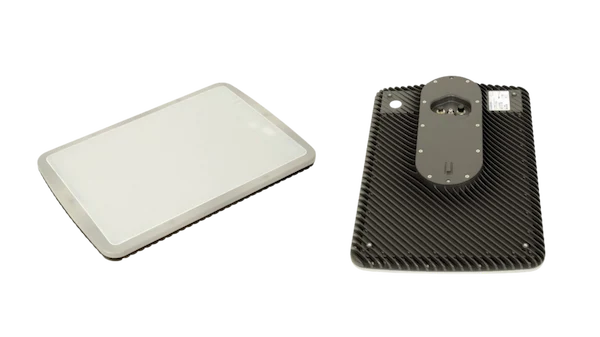

Hughes HL1100W
Electronically Steered Antenna · OneWeb| Peak Downlink | 50 Mbps |
| Peak Uplink | 10 Mbps |
| Duplexity | Half duplex |
| TX Frequency | 14.0 - 14.5 GHz |
| RX Frequency | 10.7 - 12.7 GHz |
| EIRP | +36.6 dBW (Dual Carrier) |
| G/T | Up to 11.3 dB/K |
| ODU Dimensions | 59.8 × 40.2 × 6.0 cm |
| ODU Weight | 10.6 kg |
| ODU Power | 130 W (typical) |
| IFL Cable | Up to 70 m (RG-6 coax) |
| Power Input | 100 - 240 VAC |
| Operating Temp | -40°C to +55°C |
| Network | OneWeb Constellation |
| Compliance | CE, R&TTE, FCC, Anatel, UKCA |
Half Duplex · LEO ESA

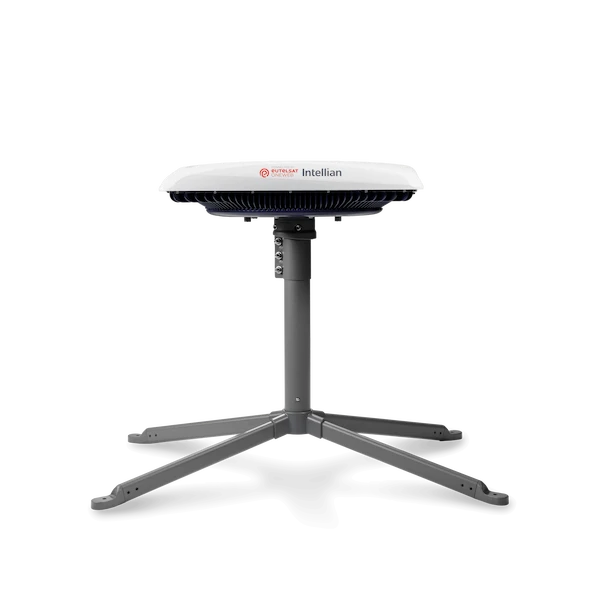

Intellian OW10HL
Compact Flat Panel · OneWeb| Peak Downlink | 50 Mbps |
| Peak Uplink | 10 Mbps |
| G/T | 9 dB/K |
| EIRP | +36.6 dBW (Dual Carrier) |
| ODU Dimensions | 56 × 45 × 12 cm |
| ODU Weight | 12.2 kg |
| Ingress Rating | IP66 |
| Operating Temp | -40°C to +55°C |
| Interface | F-Type + SMA (R-GNSS) |
| Mount | 60mm pole, Quadpod, Non-Penetrating |
| Network | OneWeb Constellation |
| Use Cases | Small enterprise, business continuity, cellular backhaul, government |
Full Duplex Terminals
Full Duplex · LEO ESA

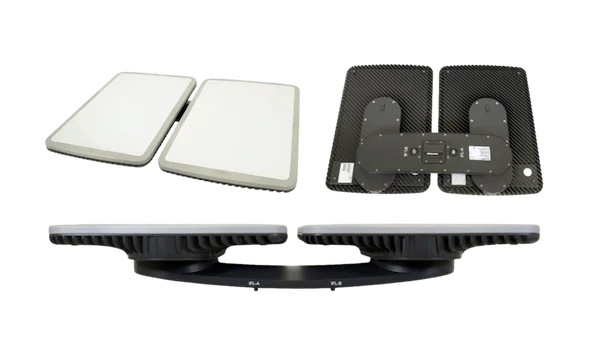

Hughes HL1120W
Electronically Steered Antenna · OneWeb| Peak Downlink | 100 Mbps |
| Peak Uplink | 20 Mbps |
| Duplexity | Full duplex |
| TX Frequency | 14.0 - 14.5 GHz |
| RX Frequency | 10.7 - 12.7 GHz |
| EIRP | +36.6 dBW (Dual Carrier) |
| G/T | Up to 11.3 dBK |
| ODU Dimensions | 59.7 × 82.8 × 11.2 cm |
| ODU Weight | 24.0 kg |
| ODU Power | 300 W max / 150 W typical |
| IFL Cable | Up to 70 m (RG-6 dual coax) |
| Power Input | 100 - 240 VAC |
| Operating Temp | -40°C to +55°C |
| Network | OneWeb Constellation |
| Compliance | CE, FCC, Anatel |
Full Duplex · LEO ESA

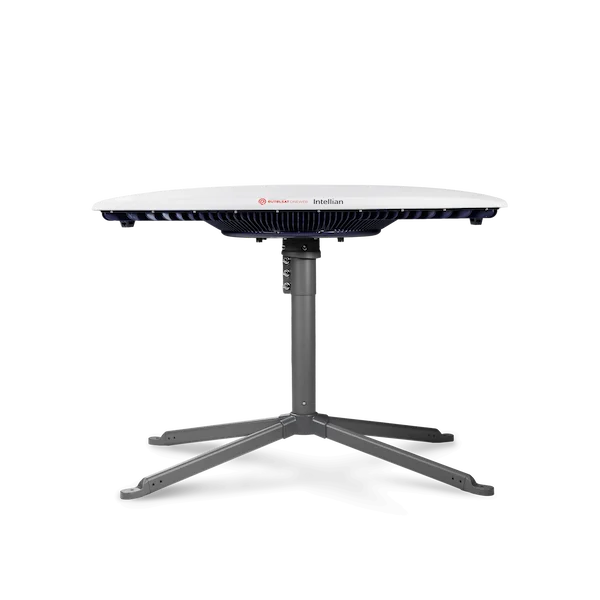

Intellian OW11FL
Enterprise Flat Panel · OneWeb| Peak Downlink | 100 Mbps |
| Peak Uplink | 20 Mbps |
| G/T | 10.7 dB/K |
| EIRP | +36.6 dBW (Dual Carrier) |
| ODU Dimensions | 97 × 50 × 13 cm |
| ODU Weight | 20.5 kg |
| Ingress Rating | IP66 |
| Operating Temp | -40°C to +55°C |
| Interface | F-Type + SMA (R-GNSS) |
| Mount | 60mm pole, Quadpod, Non-Penetrating |
| Network | OneWeb Constellation |
| Use Cases | Enterprise, community broadband, cellular backhaul, government |
Parabolic Auto-Pointing Terminal
Motorized single parabolic dish with automatic satellite tracking - ideal where higher gain and throughput are required at a fixed site.
Parabolic · Auto-Pointing · LEO

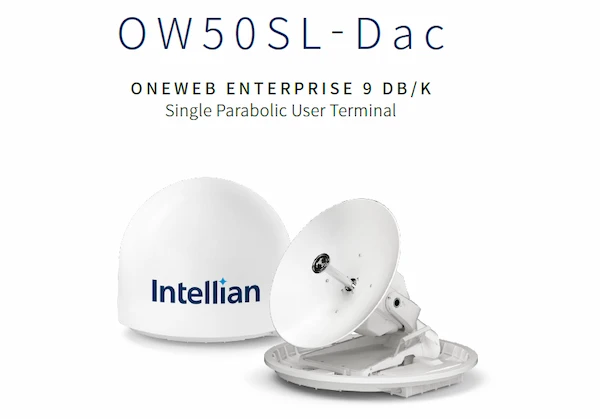

Intellian OW50SL-DAC
Single Parabolic Terminal · OneWeb| Peak Downlink | 100 Mbps |
| Peak Uplink | 20 Mbps |
| Reflector Diameter | 53 cm |
| Radome Diameter | 73.5 cm |
| Radome Height | 57.7 cm |
| TX Frequency | 14.0 - 14.5 GHz |
| RX Frequency | 10.7 - 12.7 GHz |
| TX Gain | 34.9 dBi |
| RX Gain | 33.4 dBi |
| G/T | 9.3 dB/K (@11.8 GHz) |
| EIRP | 33.6 dBW / 20 MHz |
| Retrace Time | Less than 750 ms |
| Azimuth Range | -300° to +300° |
| Elevation Range | -90° to +90° |
| ODU Weight | 23.0 kg |
| Power Supply | 100 - 240 VAC (via +56 VDC adapter) |
| Polarization | Circular (Tx: LHCP, Rx: RHCP) |
| Network | OneWeb Constellation |
Typical Applications
Key Advantages of LEO Fixed Terminals
LEO satellites orbit at 1,200 km vs 36,000 km for GEO - delivering significantly lower latency for real-time applications.
OneWeb's global LEO constellation covers all of India including J&K, Northeast and offshore - zero coverage gaps.
All terminals operate from -40°C to +55°C - rated for India's most demanding environments.
Lightweight, no-fastener ESA design installs in minutes by one person. No specialist tools required.
CNX-WIFI indoor unit includes Wi-Fi 6 and 4-port GigE - ready to connect your devices straight out of the box.
The OW50SL-DAC retraces between satellites in under 750 ms - seamless connectivity even as satellites pass overhead.
