Overview
Maritime LEO terminals use Active Electronically Scanned Array (AESA) technology - flat panel antennas with no moving parts that electronically track LEO satellites even in rough sea conditions. Operating on the Eutelsat OneWeb LEO constellation, these above-deck terminals connect to below-deck CNX units via a single coaxial cable carrying both power and data.
Netcom Associates has extensive maritime deployment experience including offshore connectivity for vessels operating near the Andaman & Nicobar Islands. We supply, install and commission maritime terminals with full marine-grade mounting and sea-trial testing support.
Our Maritime LEO Terminals
Full Duplex · LEO ESA · Maritime

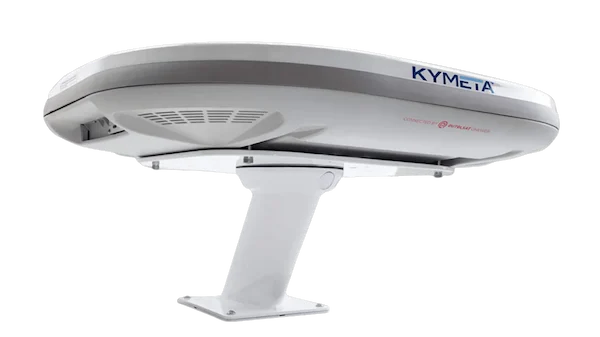

Kymeta™ Peregrine u8
Holographic ESA · OneWeb via Intelsat FlexMove| Peak Downlink | 100 Mbps |
| Peak Uplink | 20 Mbps |
| Antenna Type | Full duplex, single aperture, Ku-band flat-panel holographic ESA |
| Network | Eutelsat OneWeb via Intelsat FlexMove LEO |
| RX Band | 10.70 - 12.75 GHz |
| TX Band | 14.00 - 14.50 GHz |
| RX Performance | G/T (broadside) 11 dB/K |
| TX Performance | EIRP (broadside) 36.6 dBW (dual carrier) |
| Scan - Azimuth | 360° |
| Scan - Elevation | +15° to +90° |
| Polarization | Circular, software-defined |
| Dimensions | 89.5 × 89.5 × 14 cm |
| Weight (LEO) | 30.1 kg |
| Weight (LEO-LTE) | 31.1 kg |
| Power (LEO) | 95 W typical |
| Power (LEO-LTE) | 125 W typical |
| Input Power | 10-30 VDC or 90-305 VAC (via accessory) |
| Operating Temp | -40°C to +55°C |
| Storage Temp | -40°C to +85°C |
| Ingress Rating | IP66 |
| Ship Motion - Roll | ±30° / 4.8 s (12.5°/s) max. |
| Ship Motion - Pitch | ±30° / 4.8 s (12.5°/s) max. |
| Ship Motion - Yaw | ±10° / 5 s max. |
| Headway Speed | 20.5 m/s (40 knots) |
| Wind Rating | 53.5 m/s (104 knots) |
| Satellite Modem | Embedded Eutelsat OneWeb |
| Cellular (optional) | 600 Mbps LTE-A Pro |
| Interfaces | Ethernet / Wi-Fi 802.11b/g/n (LEO-LTE) |
| Mount | Maritime pedestal adapter - fits existing VSAT mounts |
| Compliance | CE, FCC, Nemko, WEEE, RoHS |
Half Duplex · LEO ESA · Maritime

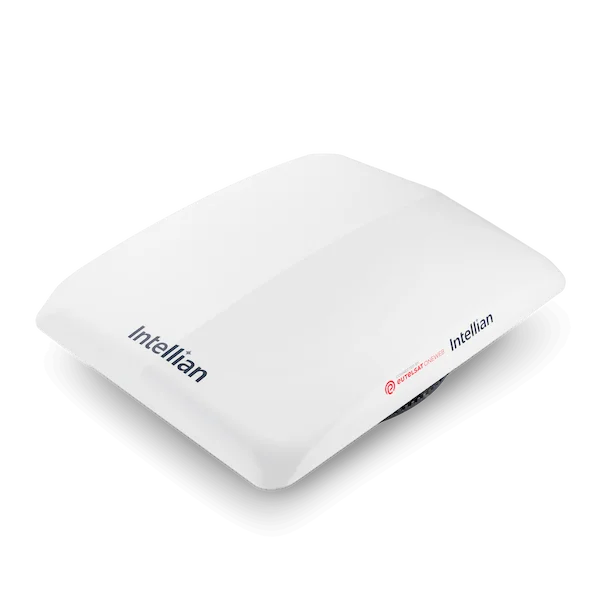

Intellian OW10HM
Compact Flat Panel · Maritime · OneWeb| Peak Downlink | 50 Mbps |
| Peak Uplink | 10 Mbps |
| G/T | 9 dB/K |
| EIRP | +36.6 dBW (Dual Carrier) |
| Above Deck Dimensions | 56 × 45 × 12 cm |
| Above Deck Weight | 12.2 kg |
| Ingress Rating | IP66 |
| Operating Temp | -40°C to +55°C |
| Interface | F-Type + SMA (R-GNSS) |
| Pole Mount | 25×25×20 cm · 4.8 kg |
| Pedestal Mast Mount | 30×30×2 cm · 1.8 kg |
| Network | OneWeb Constellation |
| Use Cases | Fishing vessels, leisure boats, small vessels |
Full Duplex · LEO ESA · Maritime

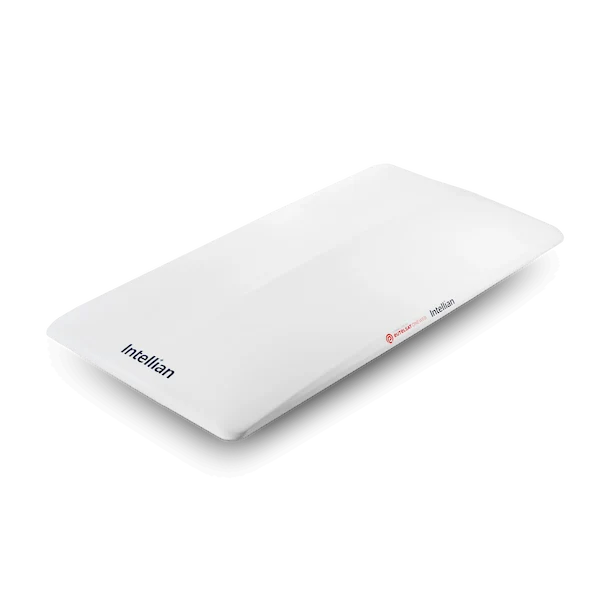

Intellian OW11FM
Enterprise Flat Panel · Maritime · OneWeb| Peak Downlink | 100 Mbps |
| Peak Uplink | 20 Mbps |
| G/T | 10.7 dB/K |
| EIRP | +36.6 dBW (Dual Carrier) |
| Above Deck Dimensions | 97 × 50 × 13 cm |
| Above Deck Weight | 20.5 kg |
| Ingress Rating | IP66 |
| Operating Temp | -40°C to +55°C |
| Interface | F-Type + SMA (R-GNSS) |
| Pole Mount | 25×25×20 cm · 4.8 kg |
| Pedestal Mast Mount | 30×30×2 cm · 1.8 kg |
| Network | OneWeb Constellation |
| Use Cases | Merchant, superyachts, cruise, energy, ferry, government |
Typical Applications
Key Advantages
Peregrine u8 rated to ±30° roll and pitch - maintains satellite lock in rough sea conditions up to 40 knots headway.
AESA flat-panel technology eliminates mechanical failures - no motors, no gyroscopes, no maintenance at sea.
OneWeb covers the Arabian Sea, Bay of Bengal, Andaman Sea and Indian Ocean - including areas far from shore.
All above-deck units carry IP66 ingress protection - fully sealed against saltwater spray, rain and dust.
Kymeta Peregrine u8 rated to 53.5 m/s wind - survives extreme maritime weather conditions.
Peregrine u8 maritime pedestal adapter installs on existing VSAT mounts - no new deck penetration required.
Netcom Associates Maritime Support
- Marine-grade installation and mounting - pole, mast and pedestal mount options for all vessel types
- Below-deck integration - CNX unit installation, cable routing and power integration
- Integration with onboard systems - navigation, GMDSS, IT networks and crew entertainment
- Sea-trial testing and commissioning - verified performance before departure
- Ongoing maintenance and lifecycle support - port-side servicing and remote diagnostics
